Profile fitting

One of the main purposes of \(\mathrm{LiMe}\) is to fit profiles to the observed lines. This is done with the \(\tt{.fit}\) functions. For example, let’s use a spectrum from the resources folder to fit \(H\beta\):

from pathlib import Path
import lime

# Specify the data location
data_folder = Path('../0_resources')
sloan_SHOC579 = data_folder/'spectra'/'sdss_dr18_0358-51818-0504.fits'
bands_df_file = data_folder/'bands'/'SHOC579_bands.txt'

# Create the observation object
spec = lime.Spectrum.from_file(sloan_SHOC579, instrument='sdss', redshift=0.0475)

# Fit a line from the default label list

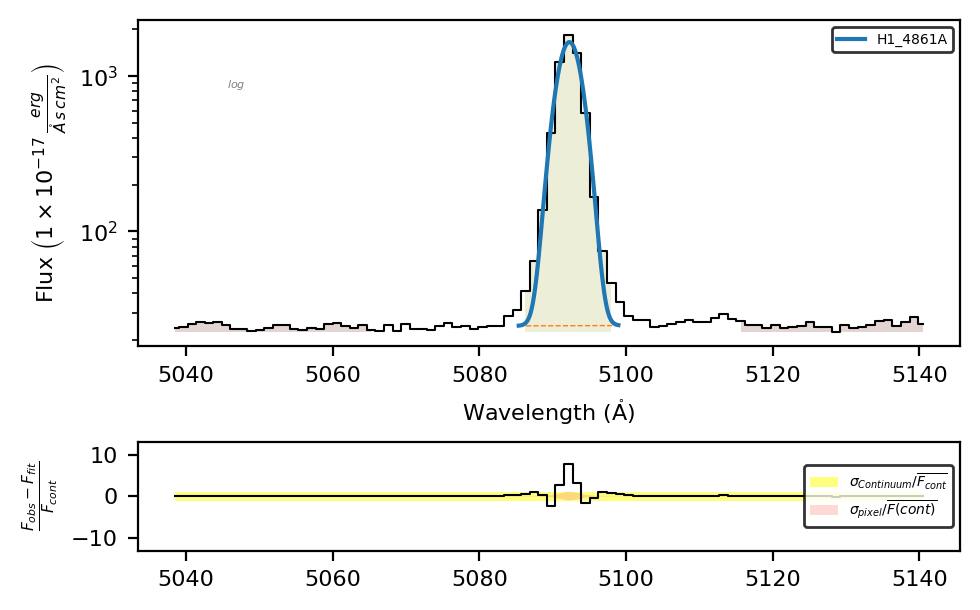

spec.fit.bands('H1_4861A', cont_source='adjacent')

And to visualize the fitted profile you can run:

# Plot the line region
spec.plot.bands()

The measurements are stored in the Spectrum.frame attribute, as a pandas DataFrame:

spec.frame[['profile_flux', 'profile_flux_err', 'amp', 'center', 'sigma']]

	profile_flux	profile_flux_err	amp	center	sigma
H1_4861A	6385.78146	264.424897	1633.726534	5092.268644	1.559019

Profile and shape:

You can use the \(\mathrm{LiMe}\) notation to adjust the profile and/or shape of your profile. For example:

# Lorentz profile fitting

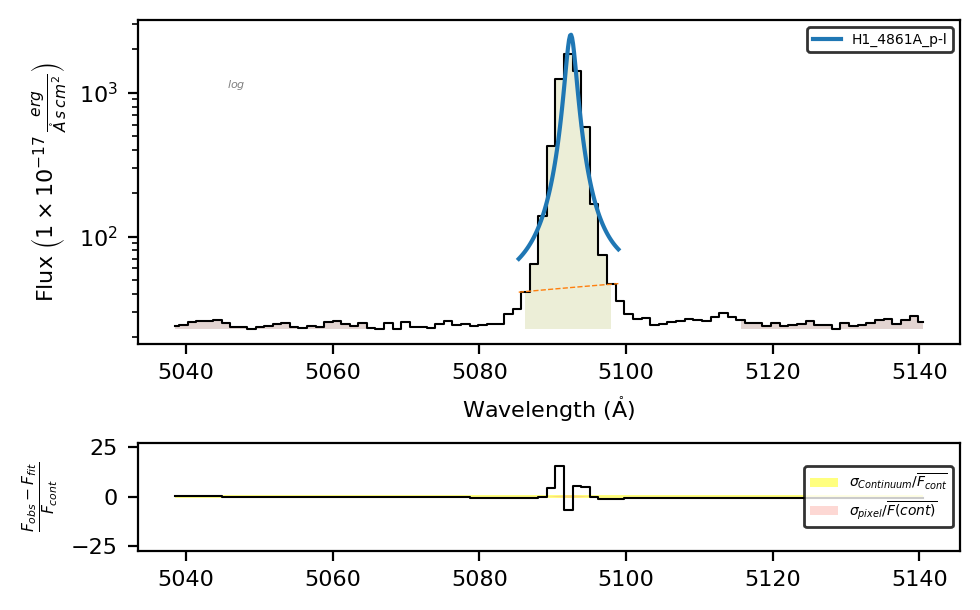

spec.fit.bands('H1_4861A_p-l')
spec.plot.bands()

Or you can use the shape and profile arguments to set these conditions:

# Lorentz profile fitting

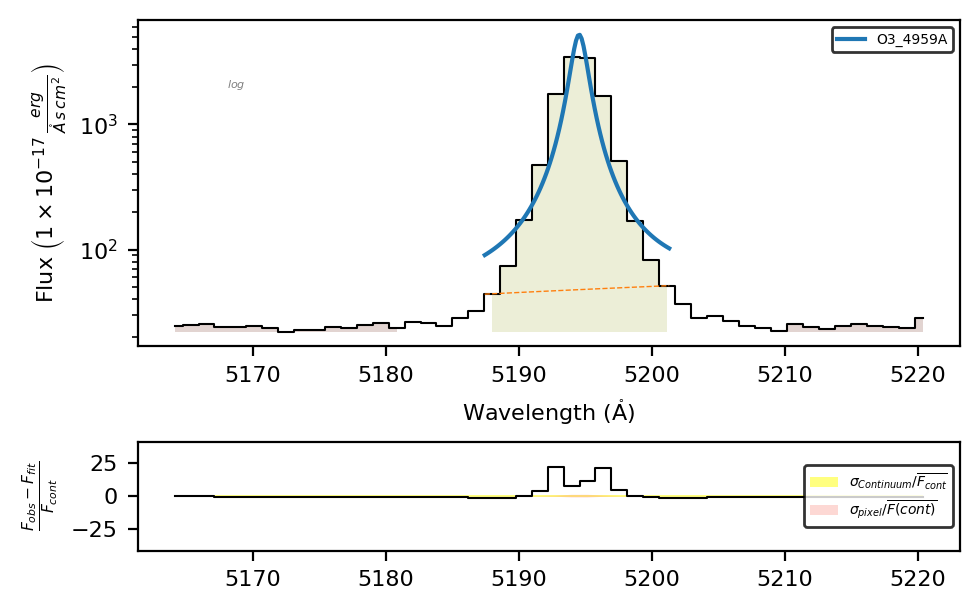

spec.fit.bands('O3_4959A', profile='l')
spec.plot.bands()

Please note: The default shape and profile values in \(\mathrm{LiMe}\) are emission (emi) and Gaussian (g). The priority for deciding the final value of these parameters is: label suffix > configuration file > lines table > profile/shape arguments in the .fit functions > default values. To change the default values in the lines database, check this guide.

You can check the available profiles, their identifying character, and their parameters by running the \(\tt{lime.show\_profile\_parameters()}\) function.

lime.show_profile_parameters()

Available profiles (with their identifying character) and their parameters:
- Gaussian "g": ['amp', 'center', 'sigma']
- Lorentzian "l": ['amp', 'center', 'sigma']
- Voigt "v": ['amp', 'center', 'sigma', 'gamma']
- Pseudo-Voigt "pv": ['amp', 'center', 'sigma', 'frac']
- Pseudo-Power law "pp": ['amp', 'center', 'sigma', 'alpha', 'frac']
- Broken Power law "p": ['a', 'b', 'c', 'alpha']
- Exponential "e": ['amp', 'center', 'alpha']

Multi-profile fitting

By default \(\mathrm{LiMe}\) assumes a single component, however, in many cases this is not enough:

# Fit a line from the default label list

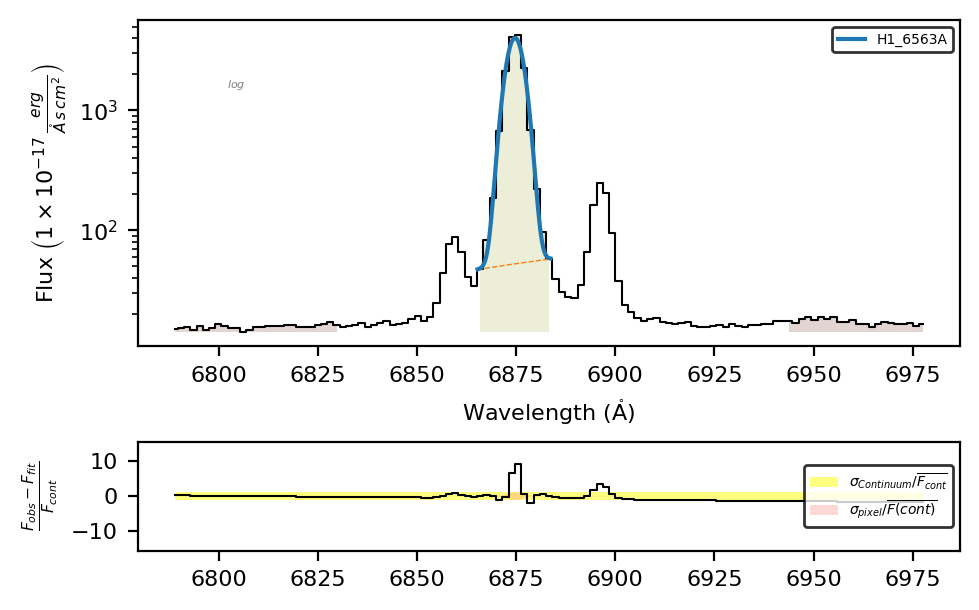

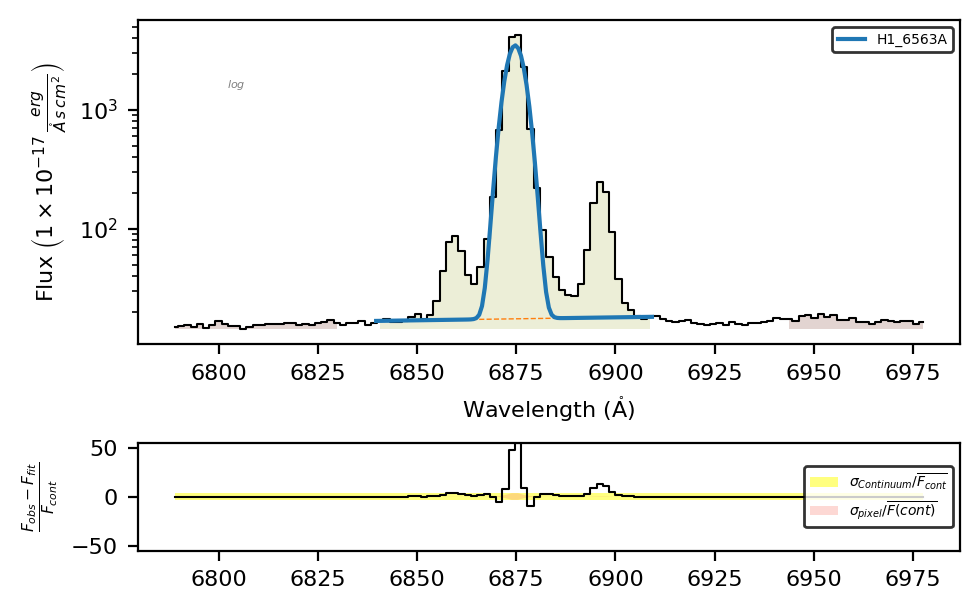

spec.fit.bands('H1_6563A')
spec.plot.bands()

In thi case we, need to fit multiple profiles simultaneously. Let’s start by making a wider band for \(H\alpha\) and \([NII]6548,6583\mathring{A}\) doublet

band_df = spec.retrieve.lines_frame(line_list=['H1_6563A'], band_vsigma=350)
band_df

	wavelength	wave_vac	w1	w2	w3	w4	w5	w6	latex_label	units_wave	particle	trans	rel_int
H1_6563A	6562.7	6564.61	6480.03	6520.66	6529.488583	6595.911417	6627.7	6661.82	$HI6563\mathring{A}$	Angstrom	H1	rec	1

If we repeat the fitting:

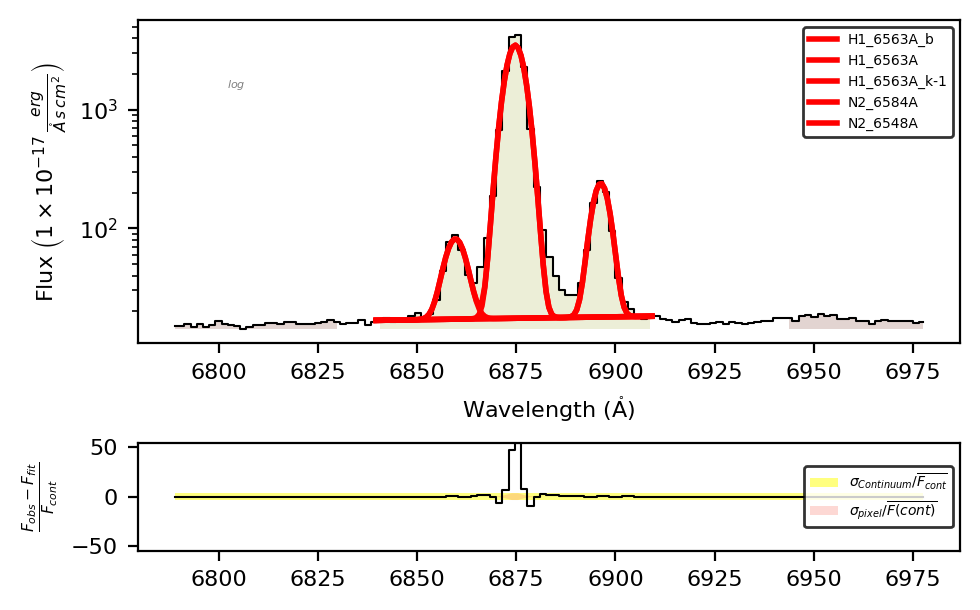

spec.fit.bands('H1_6563A', bands=band_df)
spec.plot.bands()

Now the central band covers the three components. However, only one line was fitted.

To fit the three components, we need to use the blended (_b) suffix and specify the three components in the fitting configuration

fit_cfg = {'H1_6563A_b': 'H1_6563A+N2_6583A+N2_6548A'}

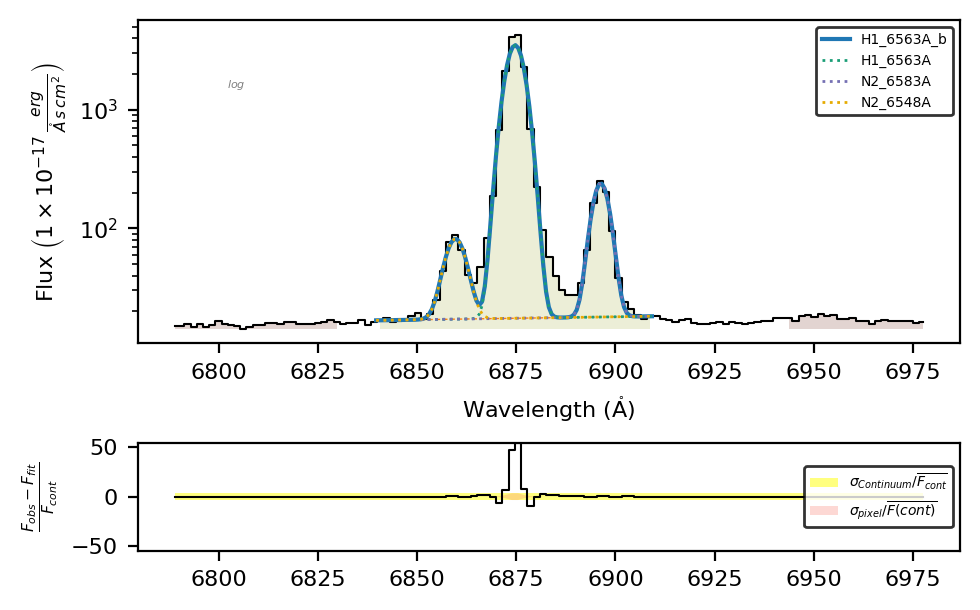

spec.fit.bands('H1_6563A_b', band_df, fit_cfg)
spec.plot.bands()

This is a better result, now in the measurements frame we have:

spec.frame.loc[['H1_6563A', 'N2_6583A', 'N2_6548A'], ['intg_flux', 'profile_flux']]

	intg_flux	profile_flux
H1_6563A	24817.856542	20239.587293
N2_6583A	24817.856542	1142.010405
N2_6548A	24817.856542	406.879654

Please remember: In de-blended lines, all components share the same integrated flux and uncertainty (intg_flux and intg_flux_err), which are only affected by the pixel values within the central line band. The profile fluxes (profile_flux and profile_flux_err) depend on the fitted profiles of each component.

Constrain the profile parameters

In order to adjust the fittings, you can constrain the parameters of the profiles considered. For example, for a Gaussian profile, if the mathematical expression is:

\(\mathrm{F_{\lambda}=\sum_{i}A_{i}e^{-\left(\frac{\lambda-\mu_{i}}{2\sigma_{i}}\right)^{2}} + m{\lambda} + c}\)

In the \(\mathrm{LiMe}\) configuration language, each parameter is tagged with the line label followed by the parameter abbreviation. For example, in the previous fitting, the \(H\alpha\) parameters are:

• \(\tt{H1\_6563A\_amp}\): the line amplitude, i.e., the height of the Gaussian profile above the continuum level \((A_i)\).

• \(\tt{H1\_6563A\_center}\): the observed Gaussian centroid in the spectrum wavelength units \((\mu_i)\).

• \(\tt{H1\_6563A\_sigma}\): the Gaussian profile sigma width in the spectrum wavelength units \((\sigma_i)\).

• \(\tt{H1\_6563A\_cont\_slope}\): the local continuum gradient. In blended lines, there is only one continuum slope, labeled after the first component \((m)\).

• \(\tt{H1\_6563A\_cont\_intercept}\): the linear flux at the blue edge of the central band. In blended lines, there is still only one continuum intercept, labeled after the first component \((c)\).

Please remember: Any value for the _center wavelength must be given in the rest frame; \(\mathrm{LiMe}\) will apply the redshift correction. Similarly, the _amp values must use the same units as the input flux, and \(\mathrm{LiMe}\) will apply the normalization.

LiMe transforms each of these entries into an LmFIT parameter, which can be constrained using the following arguments:

• value: Initial value of the parameter. \(\mathrm{LiMe}\) provides an initial guess for the parameters from the integrated measurements.

• vary: Whether the parameter is free during fitting (default is True). If set to False, the initial value remains unchanged.

• min: Lower bound for the parameter value. The default value is -numpy.inf (no lower bound).

• max: Upper bound for the parameter value. The default value is numpy.inf (no upper bound).

• expr: Mathematical expression to constrain the value during fitting. The default value is None.

Let’s try some of these parameter constraints:

line = 'H1_6563A_b'
fit_conf = {'H1_6563A_b': 'H1_6563A+H1_6563A_k-1+N2_6584A+N2_6548A',        # Line components of the line
            'N2_6548A_amp': {'expr': 'N2_6584A_amp/2.94'},                  # [NII] amplitude constrained by the emissivity ratio
            'N2_6548A_kinem': 'N2_6584A',                                   # Tie the kinematics of the [NII] doublet
            'H1_6563A_k-1_center': {'value':6562, 'min': 6561, 'max':6563}, # Range for the wide Hα value
            'H1_6563A_k-1_sigma': {'expr':'>1.0*H1_6563A_sigma'}}           # Second Hα sigma must be higher than first sigma

# Second attempt including the fit configuration

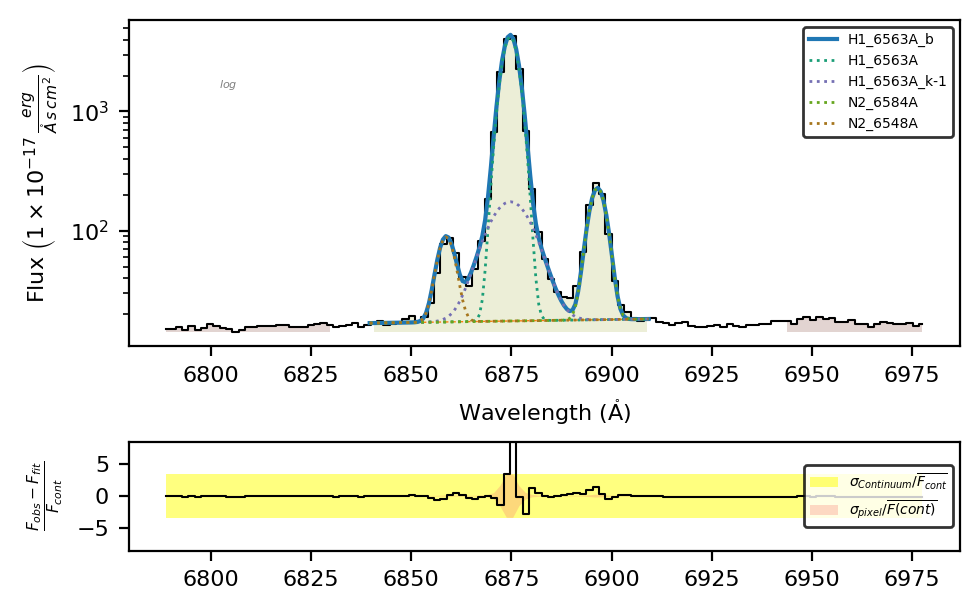

spec.fit.bands(line, band_df, fit_conf)
spec.plot.bands()

In this fitting, we made several improvements:

• The amplitude ratio of the \([NII]6548,6584\mathring{A}\) lines is set to the theoretical value (2.94). This is done by using 'expr': 'N2_6584A_amp/2.94' to force N2_6548A_amp to adhere to this relation.

spec.frame.loc['N2_6584A', 'amp']/spec.frame.loc['N2_6548A', 'amp']

np.float64(2.94)

• The nitrogen doublet is constrained to have the same kinematics by using 'N2_6548A_kinem': 'N2_6584A'.

spec.frame.loc[['N2_6584A', 'N2_6548A'], ['v_r', 'sigma_vel']]

	v_r	sigma_vel
N2_6584A	-11.002195	88.25475
N2_6548A	-11.001070	88.25475

• We added a kinematic component to \(H\alpha\) (H1_6563A_k-1). The sigma of this component is larger, thanks to the 'H1_6563A_k-1_sigma': {'expr':'>1.0*H1_6563A_sigma'} term.

spec.frame.loc[['H1_6563A', 'H1_6563A_k-1'], 'sigma']

H1_6563A        1.981143
H1_6563A_k-1    5.210585
Name: sigma, dtype: float64

• The sigma of the wide component has a user-defined initial value and is constrained to 1 Å via the 'H1_6563A_k-1_center': {'value':6562, 'min': 6561, 'max':6563} term.

Failed fittings

Depending on the complexity of the fitting, the minimizer may fail to converge. In this case, the profile lines will be displayed in red:

line = 'H1_6563A_b'
fit_conf = {'H1_6563A_b': 'H1_6563A+H1_6563A_k-1+N2_6584A+N2_6548A'}
spec.clear_data()
spec.fit.bands(line, band_df, fit_conf)
spec.plot.bands()

LiMe WARNING: Gaussian fit uncertainty estimation failed for H1_6563A_b

The uncertainty of the profile components will be np.nan:

spec.frame.loc[['H1_6563A', 'H1_6563A_k-1'], ['profile_flux', 'profile_flux_err', 'amp', 'amp_err', 'center', 'center_err', 'sigma', 'sigma_err']]

	profile_flux	profile_flux_err	amp	amp_err	center	center_err	sigma	sigma_err
H1_6563A	NaN	NaN	3480.831509	NaN	6874.710382	NaN	2.311061	NaN
H1_6563A_k-1	NaN	NaN	5502.500434	NaN	-62936.628528	NaN	613.312677	NaN

To fix a failed fitting, you can add more constraints on the parameters. To gain better insight into the causes behind the failed fitting, you can access the LmFIT report via .fit.report():

spec.fit.report()

[[Fit Statistics]]
    # fitting method   = least_squares
    # function evals   = 1317
    # data points      = 44
    # variables        = 12
    chi-square         = 5001.70249
    reduced chi-square = 156.303203
    Akaike info crit   = 232.267136
    Bayesian info crit = 253.677411
    R-squared          = 0.95808967
##  Warning: uncertainties could not be estimated:
[[Variables]]
    H1_6563A_m_cont:  0.01991183 (fixed)
    H1_6563A_n_cont: -119.4128 (fixed)
    H1_6563A_amp:     3480.83151 (init = 4266.472)
    H1_6563A_center:  6874.71038 (init = 6874.428)
    H1_6563A_sigma:   2.31106071 (init = 3.165993)
    H1_6563A_k-1_amp:     5502.50043 (init = 4266.472)
    H1_6563A_k-1_center: -62936.6285 (init = 6874.428)
    H1_6563A_k-1_sigma:   613.312677 (init = 3.165993)
    N2_6584A_amp:     221.843973 (init = 4266.472)
    N2_6584A_center:  6896.30976 (init = 6896.74)
    N2_6584A_sigma:   2.05079241 (init = 3.165993)
    N2_6548A_amp:     64.4657154 (init = 4266.472)
    N2_6548A_center:  6859.65218 (init = 6858.967)
    N2_6548A_sigma:   2.50036663 (init = 3.165993)

We can see in this report that there is a large change between the initial centers for the \(H\alpha\) components:

H1_6563A_center:  16599.3998 (init = 6874.448)
H1_6563A_k-1_center: -2850.16426 (init = 6874.448)

This means that you should apply stronger constraints to these parameters.

Please remember: Once we start fitting profiles with more than 10 dimensions (for example, four Gaussian components), traditional minimizers are very sensitive to the boundary conditions and cannot explore the parameter space efficiently. Future \(\mathrm{LiMe}\) upgrades will explore more advanced samplers to automatically determine the number of components and estimate the distributions of parameter values.

Loading the fitting configuration from a text file

In most cases, you will be interested in fitting multiple lines from multiple spectra. To simplify typing the configuration entries, it is recommended that you put your configuration into a text file using the .toml configuration format and use that as input for your .fit functions.

For example, let’s save the previous configuration to a text file:

fit_cfg_str = """[default_line_fitting]
H1_6563A_b = 'H1_6563A+H1_6563A_k-1+N2_6584A+N2_6548A'
N2_6548A_amp = 'expr:N2_6584A_amp/2.94'
N2_6548A_kinem = 'N2_6584A'
H1_6563A_k-1_center = 'value:6562,min:6561,max:6563'
H1_6563A_k-1_sigma = 'expr:>1.0*H1_6563A_sigma'
"""

# Save to file while keeping line breaks
with open("../0_resources/results/Halpha_cfg.toml", "w", encoding="utf-8") as file:
    file.write(fit_cfg_str)

This produces a ‘.toml’ file, which can be read using the \(\tt{lime.load\_cfg}\) function:

fit_cfg = lime.load_cfg("../0_resources/results/Halpha_cfg.toml")
fit_cfg

{'default_line_fitting': {'H1_6563A_b': 'H1_6563A+H1_6563A_k-1+N2_6584A+N2_6548A',
  'N2_6548A_amp': {'expr': 'N2_6584A_amp/2.94'},
  'N2_6548A_kinem': 'N2_6584A',
  'H1_6563A_k-1_center': {'value': 6562.0, 'min': 6561.0, 'max': 6563.0},
  'H1_6563A_k-1_sigma': {'expr': '>1.0*H1_6563A_sigma'}}}

When the \(\tt{lime.load\_cfg}\) function finds a [section] with _line_fitting, it formats the entries to match the expected \(\mathrm{LiMe}\) style. This way, you don’t need to type the “{” and “}” characters (but you must avoid white spaces and put all item values between ’ ‘).

This dictionary can be passed directly to the fitting function:

line = 'H1_6563A_b'
spec.fit.bands(line, band_df, fit_cfg)
spec.plot.bands()

Alternatively, we can directly provide the text file path (this also applies to the line bands argument):

line = 'H1_6563A_b'
spec.fit.bands(line, band_df, "../0_resources/results/Halpha_cfg.toml")
spec.plot.bands()

Save the results

\(\mathrm{LiMe}\) can save the results into different formats using the \(\tt{lime.Spectrum.save\_frame}\) function:

# Save to a text file
spec.save_frame('../0_resources/results/example1_linelog.txt')

Additional file formats allow the user to save the current data to a specific page:

spec.save_frame('../0_resources/results/example1_linelog.fits', page='SHOC579')
spec.save_frame('../0_resources/results/example1_linelog.xlsx', page='SHOC579')

Finally, if you have latex and pylatex installed on your system you can also save the results as a pdf file:

spec.save_frame('../0_resources/results/example1_linelog.pdf', param_list=['eqw', 'profile_flux', 'profile_flux_err'])

The argument param_list constrains the output measurements to the input list.

Takeaways

• By default, \(\mathrm{LiMe}\) fits a Gaussian profile to a line. You can change this using the line notation, the profile/shape arguments in the \(\tt{.fit}\) functions, the input bands table, or the default lines database.

• To fit multiple components to a line, you need to add the blended suffix to the line label (for example, H1_6563A_b) and include its components in the fitting configuration (for example, H1_6563A_b='H1_6563A+N2_6585A+N2_6548A').

• You can constrain the components’ profile parameters using the \(\tt{value}\), \(\tt{min}\), \(\tt{max}\), \(\tt{expr}\), and \(\tt{vary}\) attributes in the configuration (for example, 'expr:>1.0*H1_6563A_sigma').

• For very complex profiles (4 components or more), the minimizer is very sensitive to the initial boundary conditions, and some tinkering may be necessary in the current algorithm version to successfully fit these profiles.

• It is recommended to save your profile settings in a .toml file and input them into the fitting functions. As long as the corresponding [section] has the _line_fitting suffix, the entries will be formatted to the expected structure. If no section name is provided, \(\mathrm{LiMe}\) will use the data from the [default_line_fitting] section.
